Kétféle változat kapható, ez a GOverlay kompatibilis kijelző. A másik az alap változat:

USB-s Grafikus kijelző
színes, 2.8colos, grafikus usb kijelző

GOverlay, színes, 3.5", grafikus USB, kijelző, PC/Laptop Gamer kijelző, Sysinfo (TN kijelzővel)
LCDsysinfo for GOverlay v2.0 USB 3.5" TFT LCD Module gamer gadget external

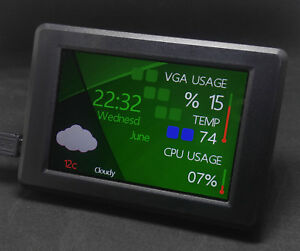

LCD Sys info for Goverlay (Most powerful gamer's LCD gadget)

GOverlay is a free software which displays instant information  on top of your games so that all the information you have customized in the setup is within view in a well organized clean display window. Static text display, integrated information (temperatures, fps, etc), an external application, or even a custom text loaded from a remote location.
GOverlay also provides a lot of customization on how to display the information, you can use all the integrated sensors on GOverlay and then load a lot more from other applications like AIDA64, OpenHardwareMonitor or any .INI file you provide.

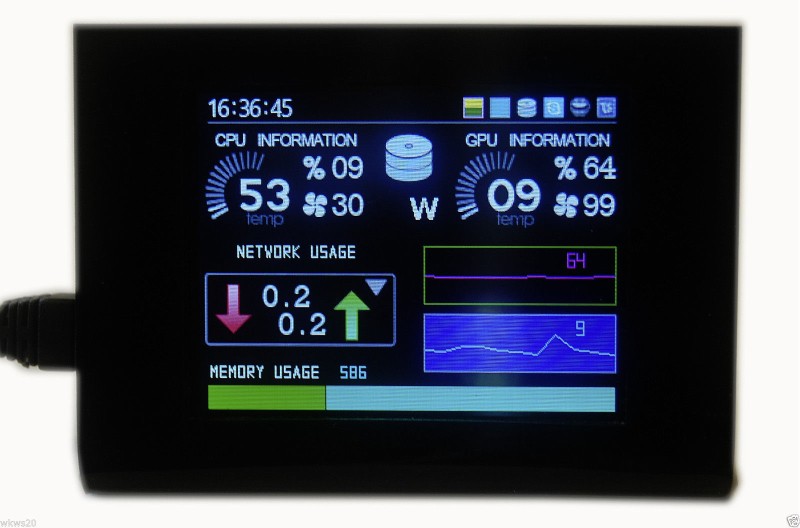

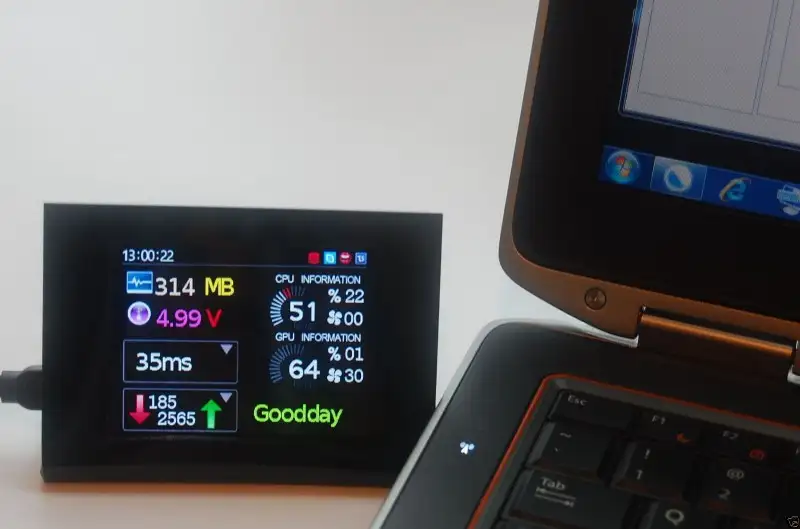

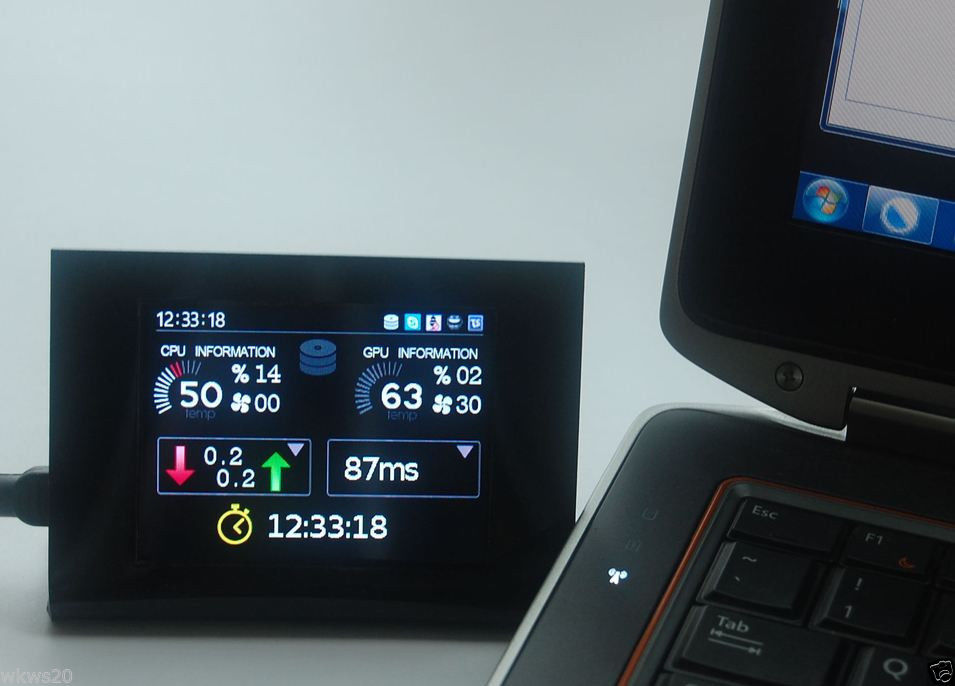

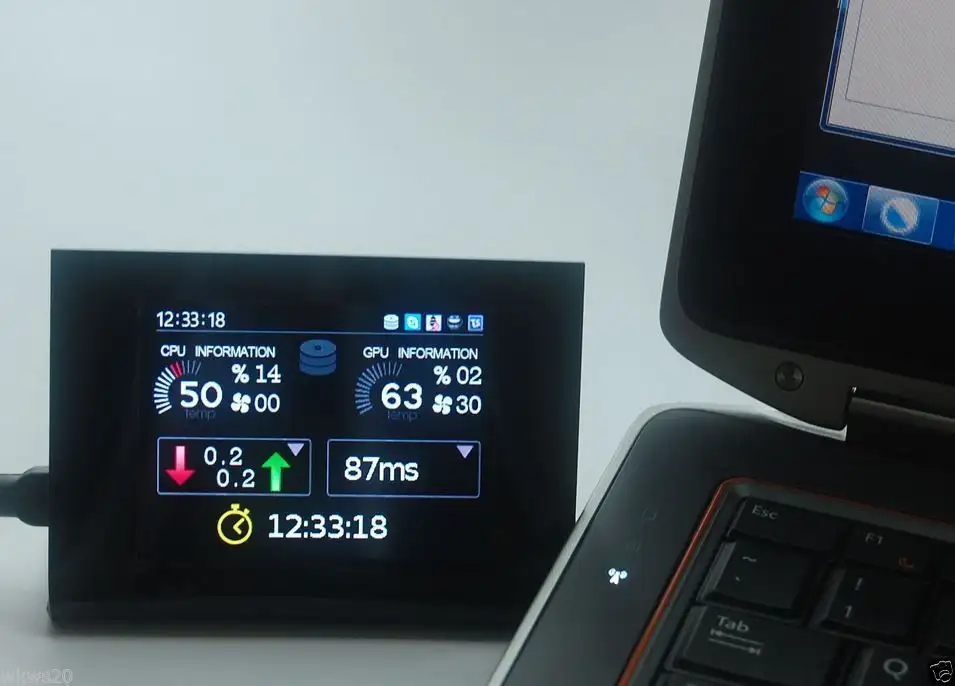

Now, wiith "LCDSysInfo for GOverlay" you can display your GOverlay information to an external USB LCD device, so that you can monitor all the necessary information during gaming or working with full screen applications. The sensors value can be set to display anywhere in the screen and the color can be changed, information are fully customizable.

Video demo: https://www.youtube.com/watch?v=KKBz3ujc3v8
Product webpage: http://www.goverlay.com/content/lcdsysinfo/

NEW! Goverlay v.1.4.1 now features windows sound volume display, car-guage like needle sensor display, image graph sensor, and support Euro Truck simulator 2
GOverlay v.1.4.0 Some bugfixes and improvements
GOverlay v.1.3.9 now features SimBin Plugin to show CAR information form Race07 game (should also work with RaceOn, GTR Evolution).
GOverlay v.1.3.8 now features a new GUI, also supports displaying weather info, and multiple layout configuration!
GOverlay v.1.3.7 now supports plugin which allow user to develop their own display elements! Details of plugin development: http://www.goverlay.com/content/plugins-howto/
GOverlay v.1.3.6 now supports Line chart and bar graph features on the LCD!

Turn your LCD device to a real-time race guage showing speed, rpm, lap, best time etcetc using GOverlay and SimBin Plugin (for example: Race07, Euro Truck Simulator 2)

Video Demo

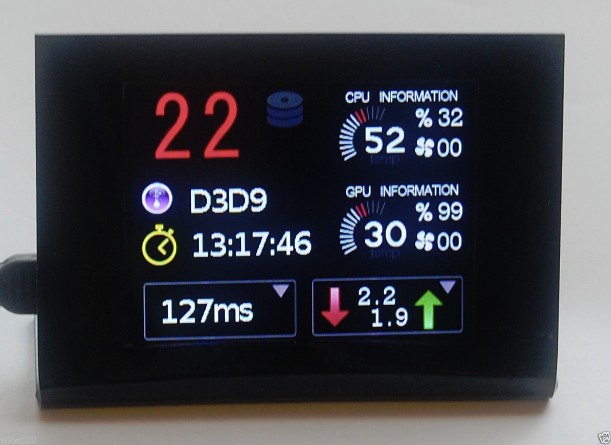

•     Pre-created sensor boxes:
• CPU Guage Box: 4 sensors, one in a Guage bar style, for showing CPU temperature,
• GPU Guage Box: Same as GPU Box
• HDD Activity Box: When HD acitiviy exceed the threshold, the HD icon will light up, R represent Read activity and W represent write activiy
• NET acitivity BOX: This will show the upload and download of a NIC card, or information from a INI file when using ICS/NAT
• Latency Box: This will show the latency from a specified server
• Time Box: This will show the current time
• Notification Box: This is a phone-style notification bar which shows the acitivy of Teamspeak, Skype, Time or HD activity

• Connection with other common applications:
• Teamspeak: This can show teamspeak information, eg. who is speaking , microphone activity etc.
• Skype: Skype new message notification icon
• Rivatuner Statistics Server: This can read out current FPS of DirectX application, good for game FPS indication
• Open Hardware Monitor: GOverlay will read any of the sensor information and display the values in the GOverlay boxes
• AIDA64: GOverlay will read any of the sensor information retrieved by AIDA64 and display the values in the GOverlay boxes

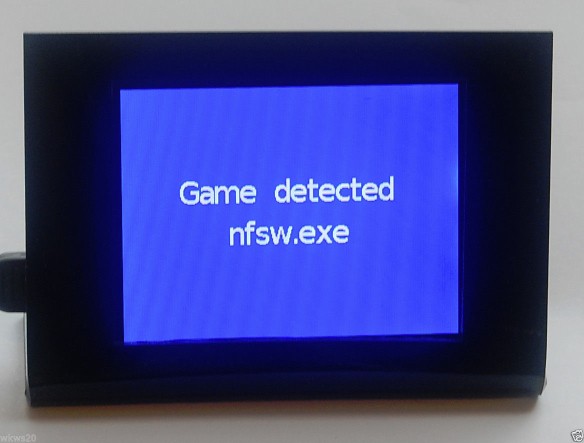

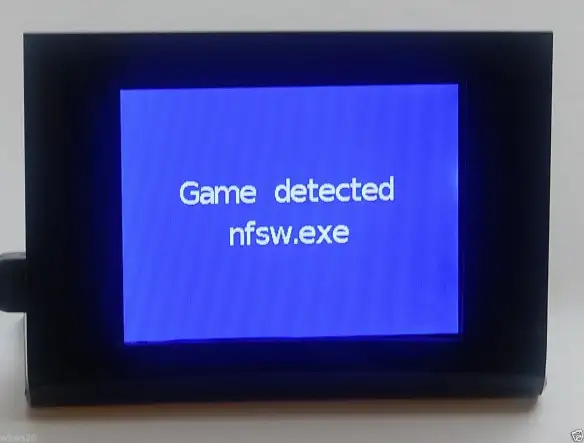

• Two sets of configuration - "Normal mode" and "Gaming mode"
• Allow a simple switch of two different LCD configurations when game is detected.
• Return to Normal mode when game is exited

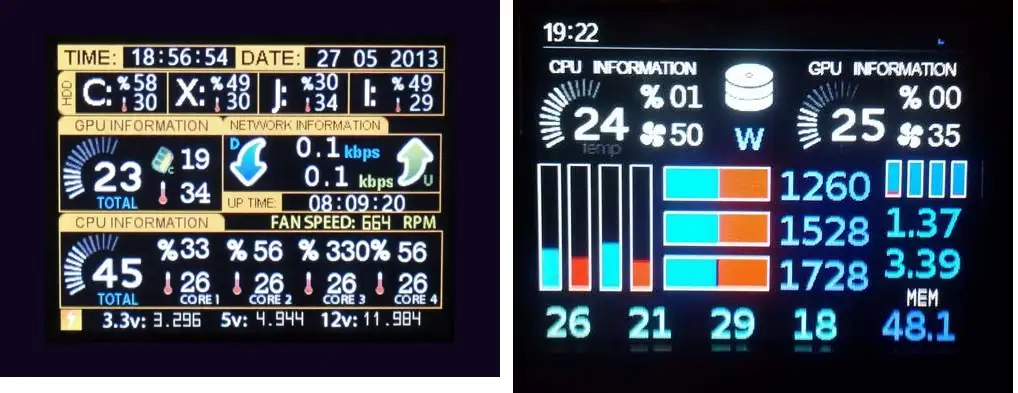

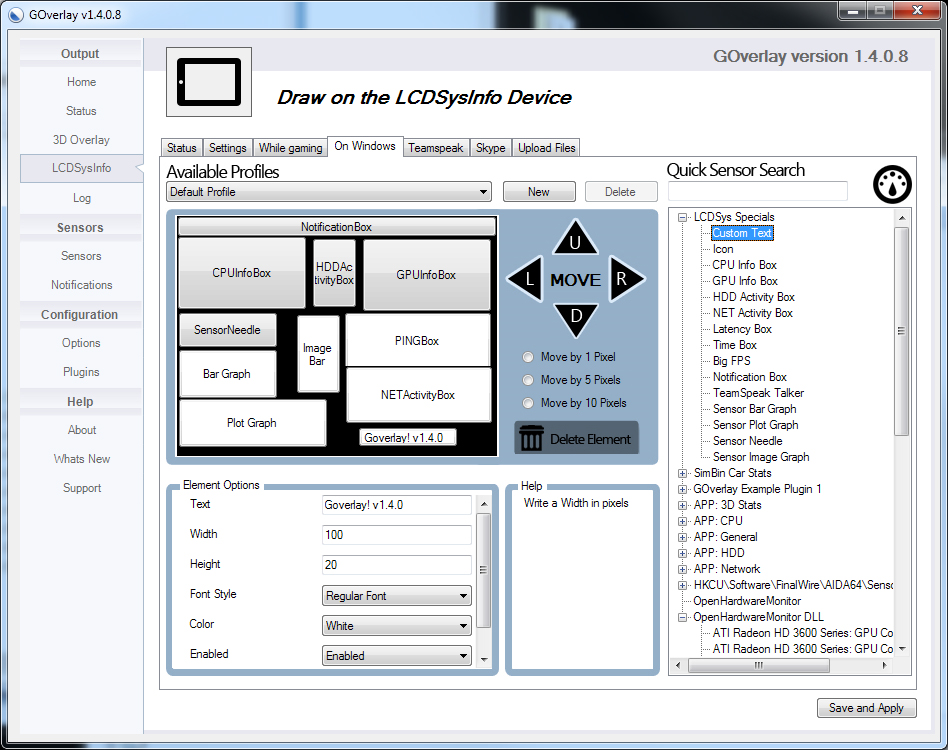

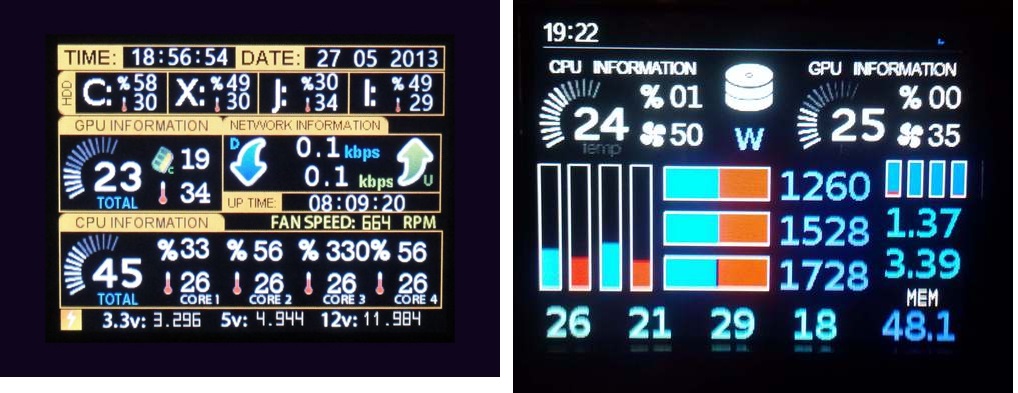

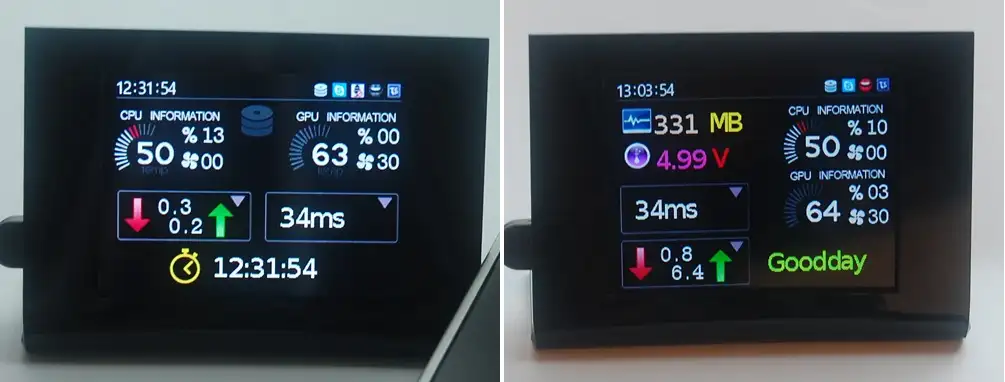

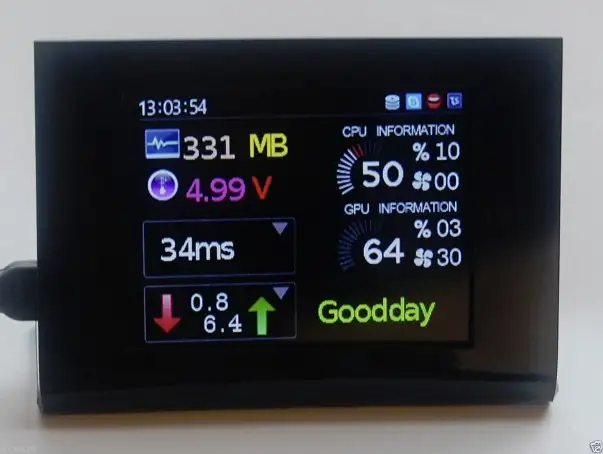

LCD Layout can be customized, new icons can be uploaded to the device to create a totally user customizable layout. These are the layouts created by GOverlay users to suite their computer configurations. Together with the plugin features, elements can be created and share out. Elements can also be downloaded from GOverlay website which is created from other GOverlay user.

Hardware Information

    *  LCD: 2.8inch TFT LCD, resolution 320x240, 262k colours
    *  microUSB USB 1.1 compliant connection (same USB plug with most commonly used mobile phone)
    *  Flash memory for storing icons and images
    *  PWM backlight control
    *  Acrylic glossy black frame for holding the LCD
    *  Protective frame to keep the PCB unexposed
    *  Support Windows XP, Vista, Windows 7, 8 32&64 bit
    *  Dimension: 90mmx60mmx30mm(including frame) Tilt : 75degree


GOverlay is developed by Ezequiel Gonzalez and it is a free software.
"LCDsysinfo for GOverlay" is developed by Coldtears Electronics, this device is for use together with GOverlay. It is NOT intended for custom application development or use in Raspberry Pi.

This device use a microUSB connection, which use same USB data transfer cable with most commonly used mobile phone (e.g. Samsung, HTC, Nokia, LG, etc.). For enivronmental issues, the cable is NOT in the package, we recommend to reuse the old cables. If you do not have such a cable, please leave us a message we will include it in the package.

Letöltések:

   Download for Goverlay (Free software) and also the LCD Driver for windows

Csomagban:

  csomagolási súly: kb ~120gr
   1. LCDsysinfo for GOverlay device
  2. MicroUSB (nem tartozék ,külön rendelhető)
