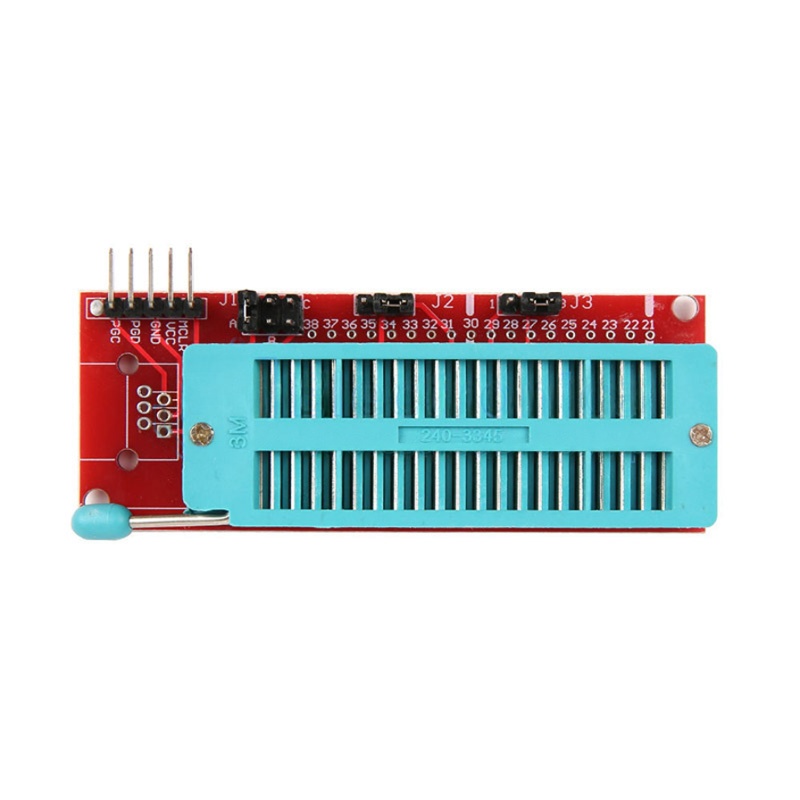

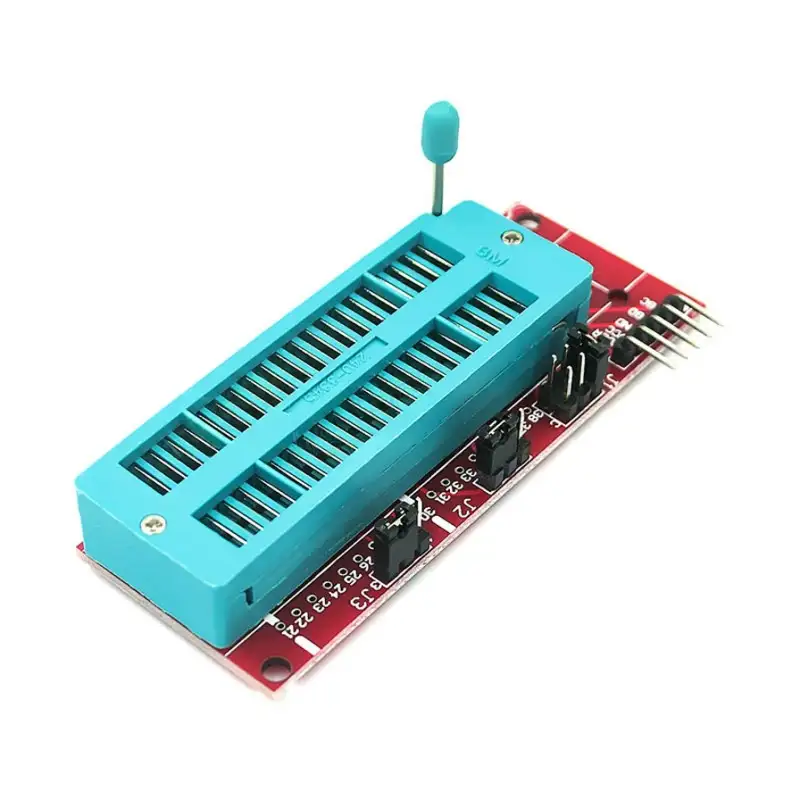

Szabvány 2.54mm lábtávú IC foglalat, főleg kifejezetten PIC-ek programozására, de más kompatibilis IC sorozatokhoz (memóriák stb.) is használható.
LVP-t nem támogat.
Panelen ki van alakítva az RJ-11 csatlakozó helye.
A különböző típusú és méretű támogatott PIC-eket a jelölt megfelelő helyre kell behelyezni, ide vannak fixen huzalozva a programozó és tápláláshoz szükséges lábak.
Description:
The programming can seat and site of ICD2, KIT2, KIT3 supporting the use. Note: Block programming can only be done with the programming, not hardware emulation.
Instructions for use
Microcontroller programmer seat installation location opposite detailed identification.
ICD2, KIT2, KIT3 by 5Pin connection with the seat programming, programming programming operation.
The base supports the following microcontrollers programming:
PIC16 / 18XX 40PIN series devices (except 16F59)
PIC16 / 18XX 28PIN devices Series
PIC16 / 18XX 18PIN devices Series
PIC 8PIN / 14PIN / 20PIN family of devices
Szettben:

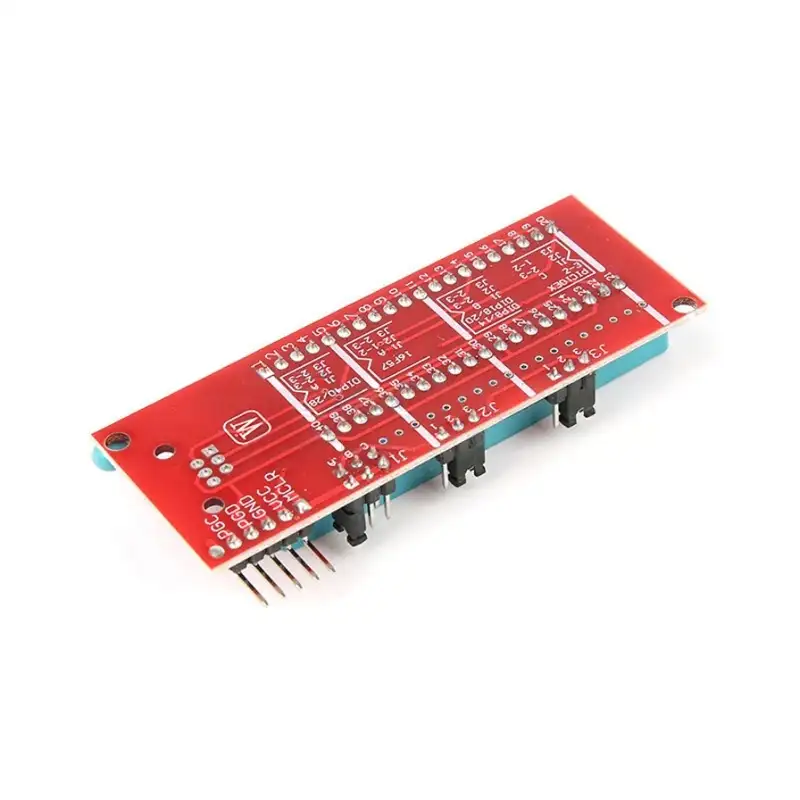

1 * pic ICD2 kit2 kit3 programming adapter
