PWM motorvezérlő 30A, programozható
DC Brush Motor Speed Control PWM LCD Timer Controller 30A 6.5-55V Programmable

Cikkszám: #5243

100% magyar cég! 100% magyar raktár!

(Bruttó) Ár: 14,990 Ft

Raktáron

Szállítása már 1490Ft-tól, akár 1 munkanap...

Mikor vehetem át?

Kosárba tesz

Név *: E-mail *: Telefon *:

Intelligens PWM vezérlő, okos vezérlő DC motorokhoz, fényekhez, HHO, stb, egyszerű folyamatok vezérléséhez, időzítő funkcó.
LCD kijelzővel, nagy teljesítménnyel. Széles bemeneti feszültségtartománnyal.

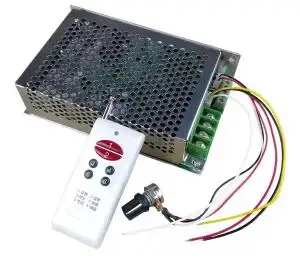

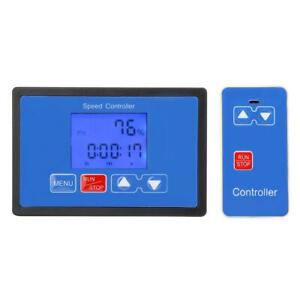

Opcionálisan rendelhető távirányítós változatban is, a termék listában megtalálható!

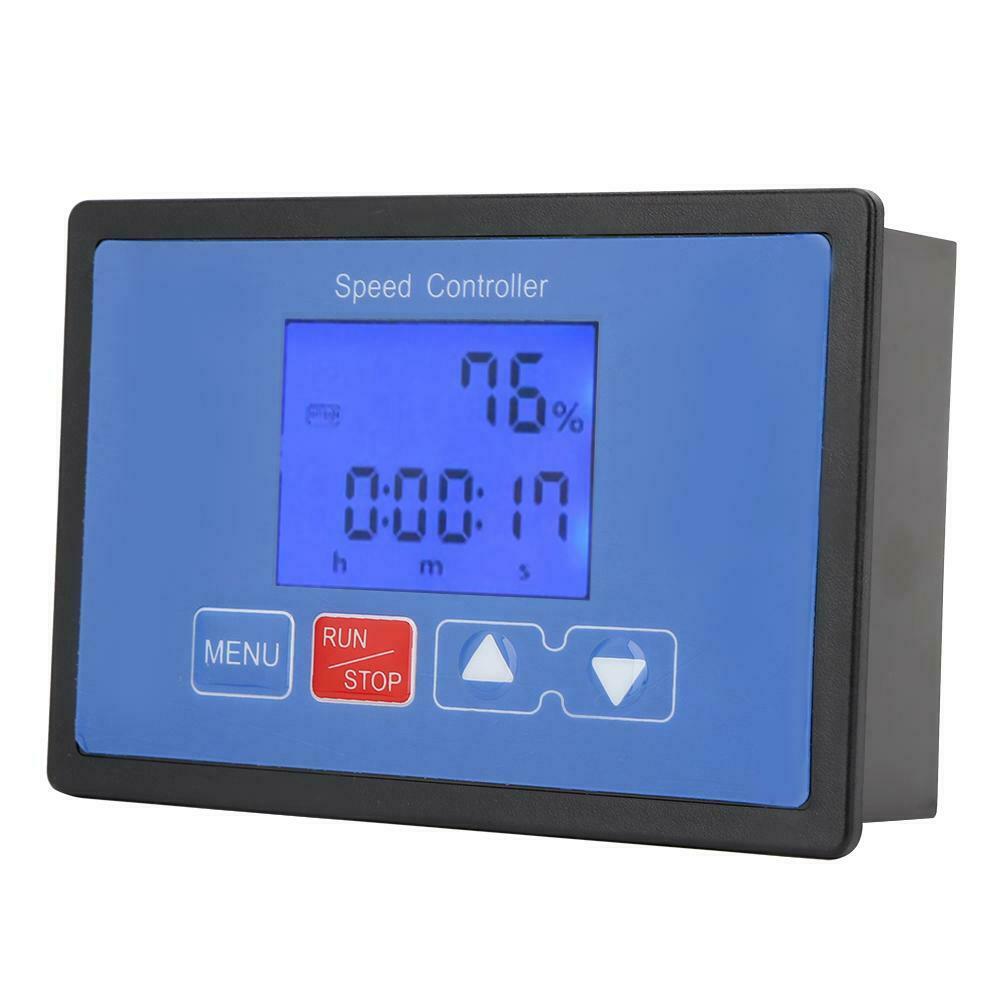

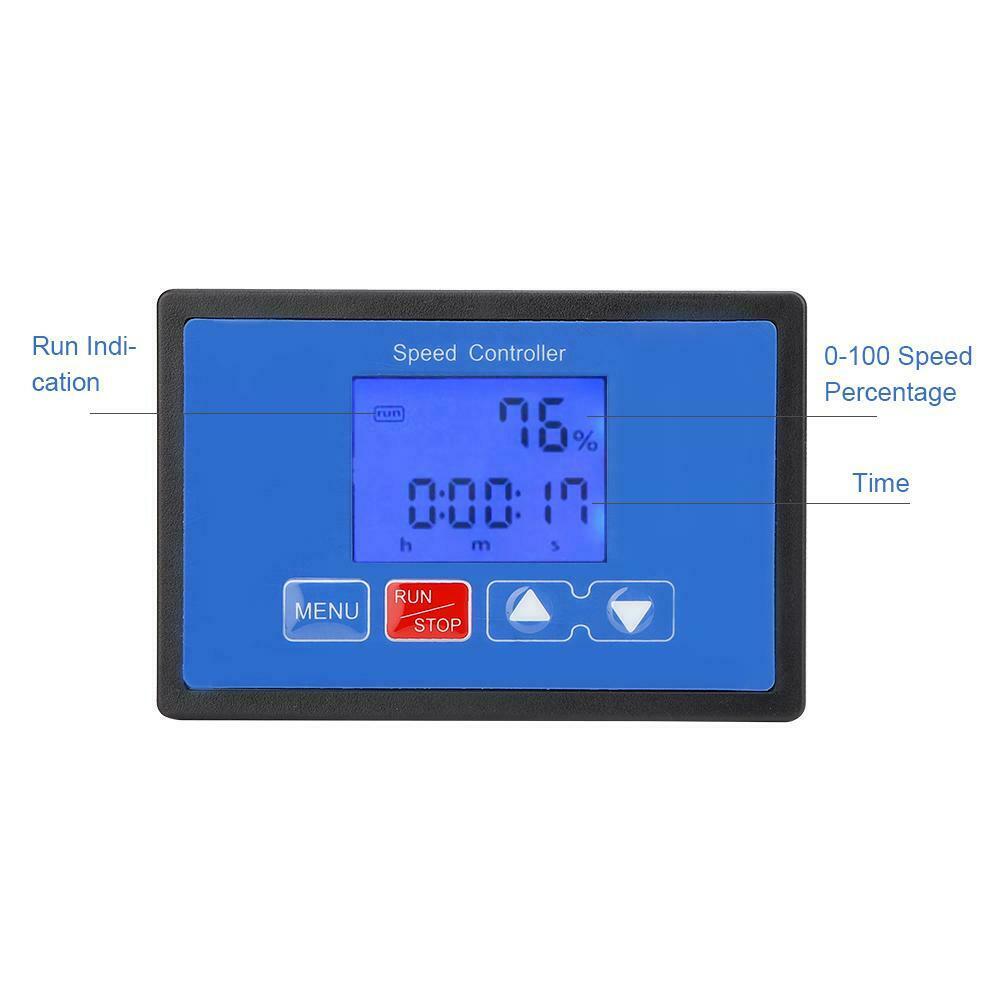

1. Backlight LCD screen displays working time and 0-100% speed percentage.
Feature:

Can set slow run/stop time, upper limit and lower limit of the speed.
Can set run time and stop time, repeatedly and automatically cycle run and stop.
Set the motor speed by the buttons rather than the potentiometers that is easy to damage.

Specification:

Item Type: DC Motor Speed Controller
Input Voltage: DC6.5V-55V (the specific voltage must be equal to the rated voltage of the motor)
Output Voltage: Linear under load
Instantaneous Current: 30A
Continuous Current: ≤20A
Speed Regulation Type: Current Regulation
Speed Adjustment Method: Jog + -
Timing: Yes
Slow Run Slow Stop: Can be set
Speed Digital Display: 0-100 percentage
Speed Range: 0-100%
Control Frequency: 15KHZ

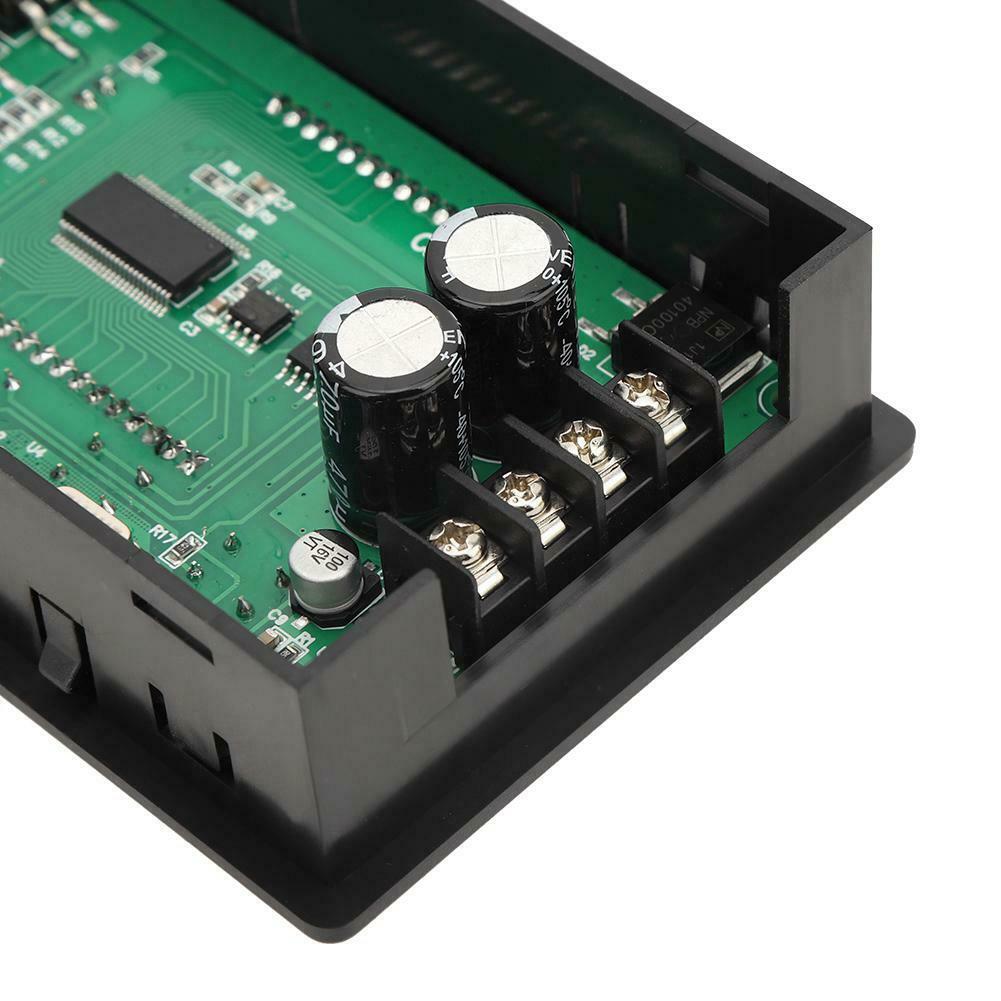

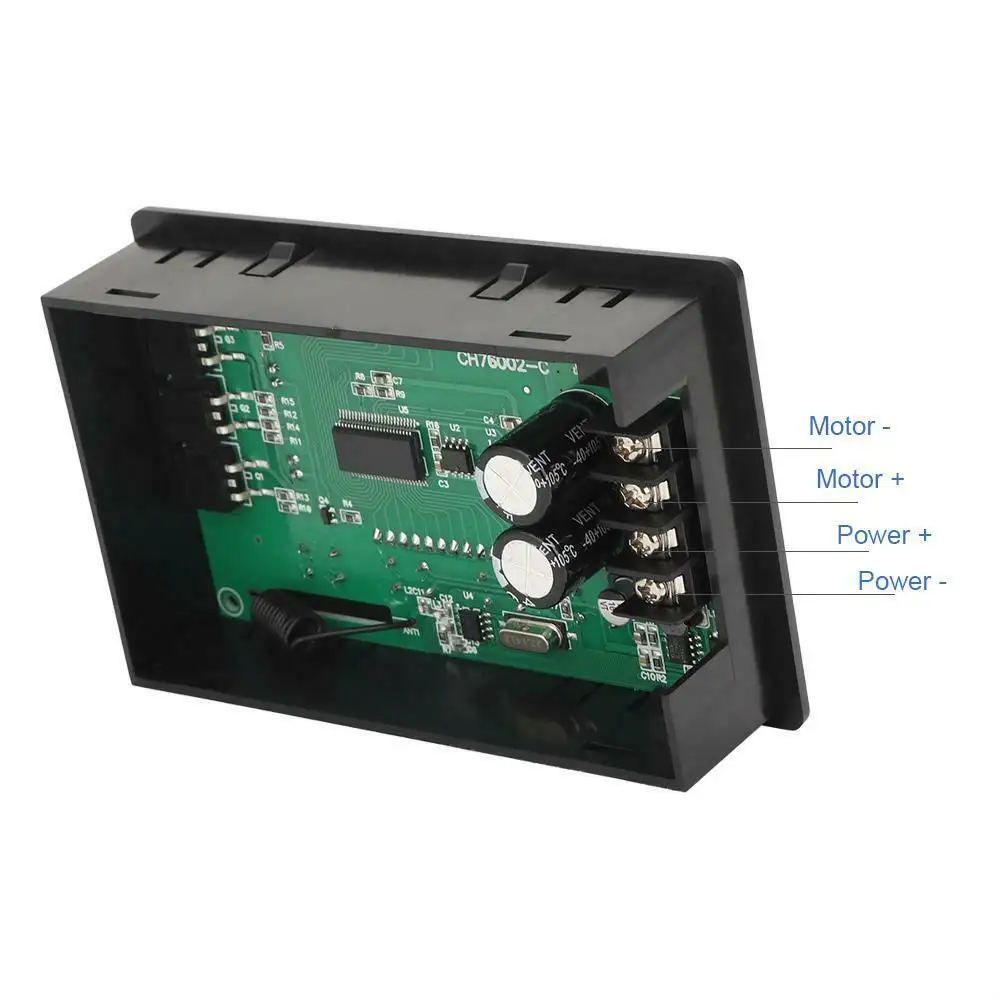

Connection Type: Fence type terminal
Supported Motor: Brush Motor

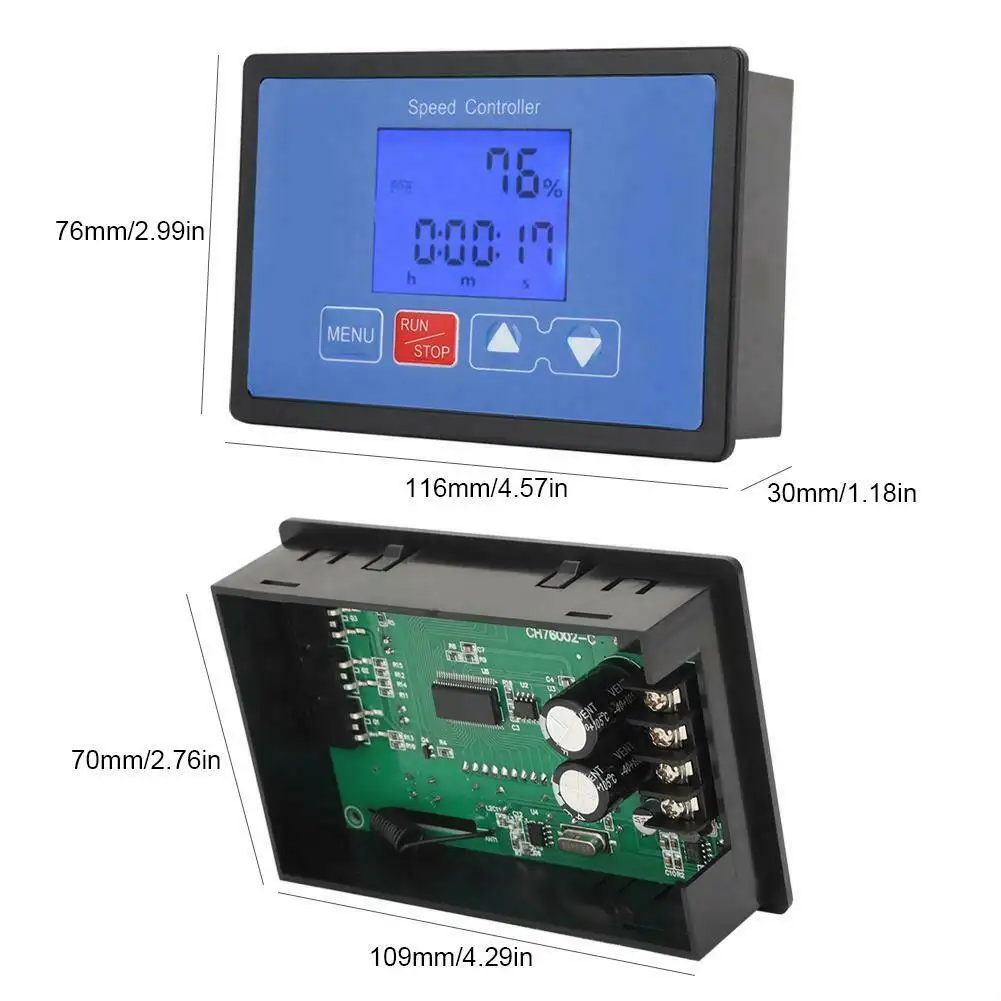

Module Size: 116x76x30mm / 4.57x2.99x1.18in
Mounting Size: 109x70mm / 4.29x2.76in
Installation Method: Embedded

Package List:
1 x Motor Speed Controller

Function:
1-2-3-4-5-6-7-8-9 function settings are as follows:

Slow Run Time Setting Function 1: 000-100, slow start to 100% speed, adjustable time 0-10s, default is 1s.

Slow Run Time Setting Function 2: 000-100, slow stop, adjustable time 0-10s, default is 1s.

Speed Lower Limit Setting Function 3: 000-080, adjustable minimum speed 0-80% and less than the maximum speed setting value, default is 0.

Speed Upper Limit Setting Function 4: 000-100, adjustable maximum speed 0-100% and greater than the minimum speed setting value, default is 100%.

Acceleration/Deceleration Value Setting Function 5: 001 002 005 010 015 020 025, Each time the key increase/reduce is pressed, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Motor Run Time Setting Function 6: 1s to 99h 59min 59s, default is 99h 59min 59s.

Motor Stop Time Setting Function 7: 1s to 99h 59min 59s, default is 99h 59min 59s.

Cycle Times Of Motor Run Stop Function 8: Adjustable 1-999 times, default 999 times

With/Without Timing Selection Function 9: 0: Without, 1: With, Default 1 With
