Hantek 6022BE USB Oszcilloszkóp
- USB-n keresztül, PC-vel használható két csatornás oszcilloszkóp.
- 20MHz sávszélesség
- 48MSa/s mintavételezési sebesség
- FFT - Fast Fourier Transzformáció

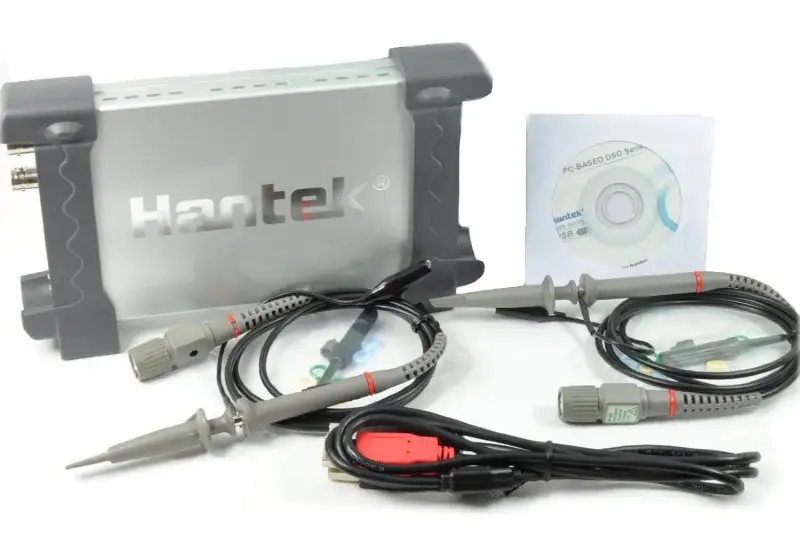

Tartozékok:
- USB kábel
- 2db mérőkábel, 60MHz, 1x, 10x csillapítással
- PC program, angol nyelvű leírás, CD
Channel | 2 Channels |
Bandwidth | 20MHz |
Shot bandwidth | DC to 20MHz |
Input Impandence | 1MΩ 25pF |
Max. Sample rate | 48MS/s |
Vertical resolution | 8Bit |
Gain range | 20mV-5V, 8Steps |
DC accuracy | ±3% |
Timebase range | 1ns-9000s, 39 Steps |
Vertical adjustable | Yes |
Input protection | Diode clamping |
X-Y | Yes |
Trigger Mode | Auto, Normal and Single |
Trigger Slope | +/- |
Trigger level adjustable | Yes |
Trigger Type | Rising edge, falling edge |
Trigger Source | CH1, CH2, EXT |
Pre/Post trigger | 0-100% |
Sampling selection | Yes |
Waveform Display | port/line, waveform average, persistence, intensity |
Network | Open/Close |
Vertical mode | CH1, CH2, Dual, ADD |
Cursor measurement | Yes |
Math | FFT, addition, subtraction, multiplication, division. |
Cursor | Frequency, Voltage |
Accessories | S/W CD, probes, manual, USB cord |
Program | Windows 98/Se/Me/NT/2000/XP/Vista/Win7/ Win8/Win8.1/Win10/Win11 |
