DC Digitális túláram védő, ampermérő, relés védőkapcsoló

Rádiós-, vezérlő- modul » Relés, vezérlő, kommunikációs modulok » Relés modulok és szolid relés SSR modulok »

DC Digitális túláram védő, ampermérő, relés védőkapcsoló
DC Digital Ammeter Overload Protection Current Sensing Switch 0.3-50A Overlimit

Cikkszám: #5393

(Bruttó) Ár: 29,990 Ft

Beszállítás alatt

Ez a termék határozatlan szállítási idővel előrendelhető. További információ e-mailben.

Mikor vehetem át?

Kosárba tesz

Név *: E-mail *: Telefon *:

DC Digital Ammeter Overload Protection Current Sensing Switch 0.3-50A Overlimit

Feature:

1. The DC digital current smart meter is used for the measurement and display of a single current in the electrical circuit.
2. A relay alarm output can be attached, upper and lower limit alarms, alarm delay, and alarm return difference can be set.
3. This product has real‑time current monitoring and alarm output functions.
4. This digital ammeter has an overload protection function to effectively protect the circuit.
5. Made of high‑quality materials, strong and durable, has a long service life.

Specifikáció:

Item Type: DC Digital Ammeter

Material: Plastic
Model: SZD07
Input Voltage: DC8-35V
Measurement Type: DC current
Range: 0.3-50A
Sensor: Hall sensor
Sensor Input Current: 25A
Sensor Output Voltage: 2.5±0.625V
Sampling Frequency: 2 times/s
Alarm Output: Upper and lower limit alarms are output from the same relay
Contact Capacity: 6A/250VAC, 6A/30VBC, resistive load
Working Environment: Temperature -10~50℃, temperature <85%RH non-corrosive places
Accuracy Level: 0.5 level

Szettben:

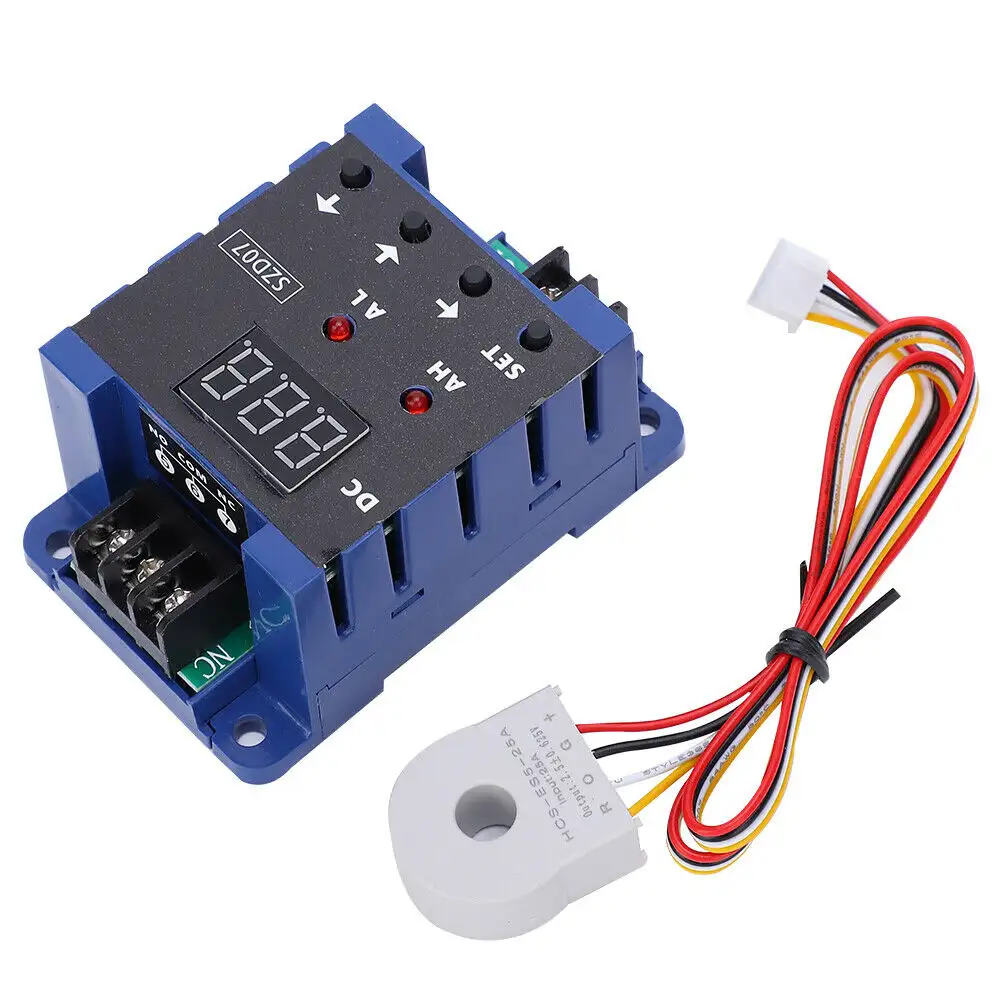

1 x DC Digital Ammeter

1 x Sensor

Note:

1. Before powering on, please reconfirm whether the auxiliary power supply, input signal and wiring of the instrument are correct.

(The corresponding value of the auxiliary power supply must match, otherwise the instrument will be burnt out)

2. To monitor a single current, the transformer can not run through multiple routes at the same time, which will affect the measurement results.

3. Contact capacity: 6A/250VAC, 6A/30VDC

The DC digital display current smart meter can be used for the measurement and display of a single current in the electrical circuit, and can be attached with a relay alarm output
Adopted of high quality electronic components, and accuracy process, ensure for the durability
Can set upper and lower limit alarm, alarm delay, alarm return difference, with current real‑time monitoring and alarm output function

info:
