Hantek IDSO1070A
Wifi-s oszcillószkóp USB bemenettel laptophoz, tablethez, telefonokhoz

Cikkszám: #5225

100% magyar cég! 100% magyar raktár!

~~99,900~~ Ft (Bruttó) Ár: 79,990 Ft

Raktáron

Szállítása már 1490Ft-tól, akár 1 munkanap...

Mikor vehetem át?

Kosárba tesz

Név *: E-mail *: Telefon *:

WiFi-s oszcilloszkóp, real time nézet számítógépen, laptopon, mobil telefonon
Kompatibilis IPhone és Androidos rendszerekkel is.

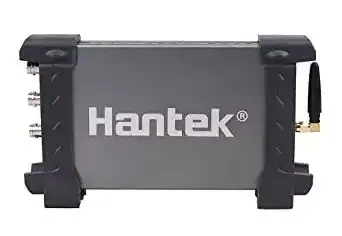

Hantek IDSO1070A Touch Screen Mobile Oscilloscope for iphone Wireless WIFI Mobile Virtual Oscilloscope 2 Channel 70MHz 250MSa/s

Description:

For iPhone/iPad/Android/Windows Oscilloscope, Multi-touch Operation.

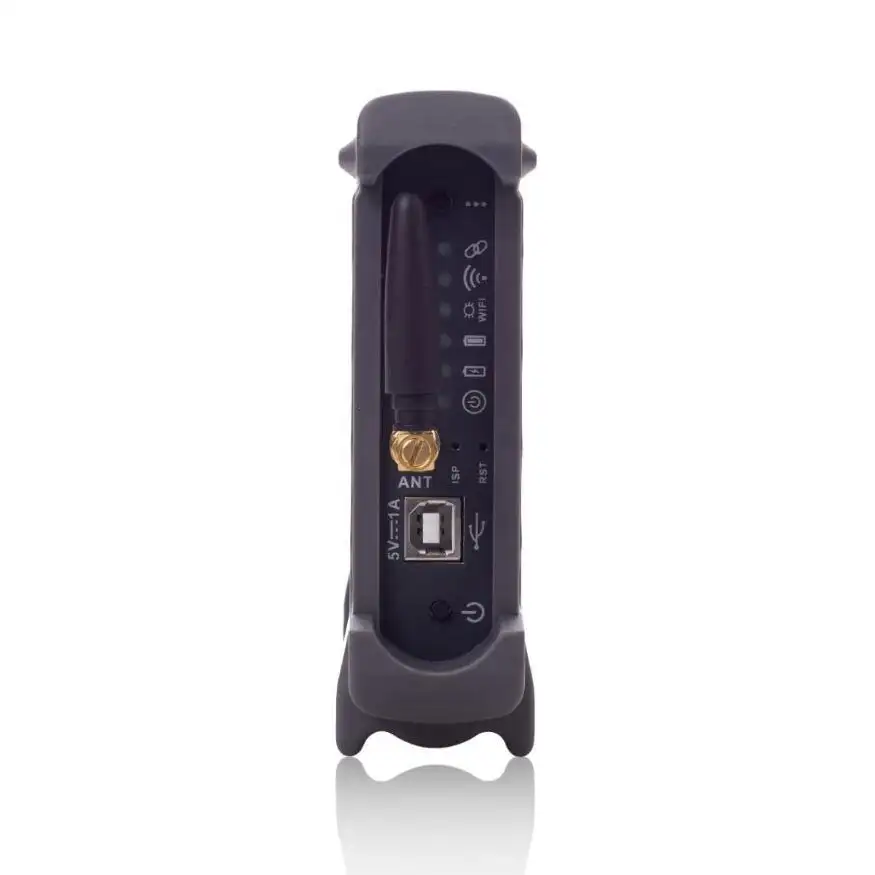

WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.
Build-in Lithium Battery with 4 hours endurance, no need of External Power. Floating Measurement is available, safe and convenient.
70MHz Bandwidth, Real-time Sampling Rate 250MSa/s
Can be connected with tablet and Phone at the same time. When operating on tablet, it can also be observed on Phone.
Good mechanical design. The outer case is made by the same material with tablet - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved
Small size which is convenient for traveling.
Software Support:IOS,Android(Unpublished),Win10,Win8, Win7, Windows NT ,VISTA, etc.
More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
FFT spectrum analyzer
Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
The waveform data can be output as EXCEL, BMP, JPG according to time and voltage

IDS1070A-7

iDSO Series

Product introduction：

iPad/Windows Oscilloscope, Multi-touch Operation.WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.Build-in Lithium Battery with 4 hours endurance, no need of External Power. Floating Measurement is available, safe and convenient.Can be connected with iPad and iPhone at the same time. When operating on iPad, it can also be observed on iPhone.Good mechanical design with small size which is convenient for traveling.

Features：

iPad/Windows Oscilloscope, Multi-touch Operation.
WIFI Communication (USB Communication), WIFI Direct Connection/ Router Connection.
Build-in Lithium Battery , no need of External Power. Floating Measurement is available, safe and convenient.
70MHz Bandwidth, Real-time Sampling Rate 250MSa/s
Can be connected with iPad and iPhone at the same time. When operating on iPad, it can also be observed on iPhone.
Good mechanical design. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved
Small size which is convenient for traveling.
Software Support:IOS,Android(Partial function),Win10,Win8, Win7, VISTA, etc.
20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.
FFT spectrum analyzer
Waveform averaging, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
The waveform data can be output as CSV, BMP according to time and voltage.

Model	iDSO1070A
Bandwidth	70MHz
Channel	2 CH
Real-time Sampling Rate	250MSa/s (single channel), 125MSa/s (two channels)
Sampling Mode	Normal, Average
Average Sampling	Average waveform, times:2, 4, 8, 16, 32, 64, 128
Memory Depth	6K
Rise time	≤5ns
Time Base Precision	±50ppm
Time Base Range	5ns/div-500s/div (1-2-4 sequences)
Input Coupling	DC, AC, GND
Input Impedance	Resistance: 1MΩ; Capacitance: 25pF
Probe Attenuation Coefficient Setting	1×, 10×, 100×, 1000
Max Input Voltage	35Vpk(DC+peak)
Waveform Interpolation	Step, Linear, Sin(x)/x
Input Sensitivity	10mV/div～5V/div
Vertical Resolution	8Bit
Vertical Displacement Range	10mV ~ 5V/div @ x1 probe; 100mV ~ 50V/div @ x10 probe;
	1V ~ 500V/div @ x100 probe; 10V ~ 5KV/div @ x1000 probe
Position Range	±4division
Low Frequency Response	≤10Hz (at input BNC)
DC Gain Accuracy	±3%
Bandwidth Limit	20MHz
Trigger Mode	Auto, normal, single
Trigger Type	Edge
Trigger Precision	±4division
Trigger Range	±4V
Trigger Sensitivity	0.02 division
Trigger Source	CH1, CH2, EXT
Waveform Signal Process	+,-,x,÷,FFT, invert
Temperature	Operating: 0℃-40℃; Non-operating: -20℃-60℃
Humidity	Below 35℃, ≤90% relative humidity; 35℃-40℃, ≤60% relative humidity
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, +Duty Cycle,-Duty Cycle
Volume	190mm * 100mm * 25mm
Weight	0.5KG
Accessory	2 passive probes -PP80
