36V 48V Step Down 12V Power Converter 720W
Waterproof DC-DC 36V 48V Step Down 12V 60A 720W Power Converter Regulator
Vízálló, por- és sokk-álló kivitel.
Kifejezetten nagyobb feszültségekhez, mozgó eszközön is megbízható működés, pl targoncákra, munkagépekre, autókra, kamionokra 12V előállítására. Nagy áram, abs. max. 60A-es terhelésre.

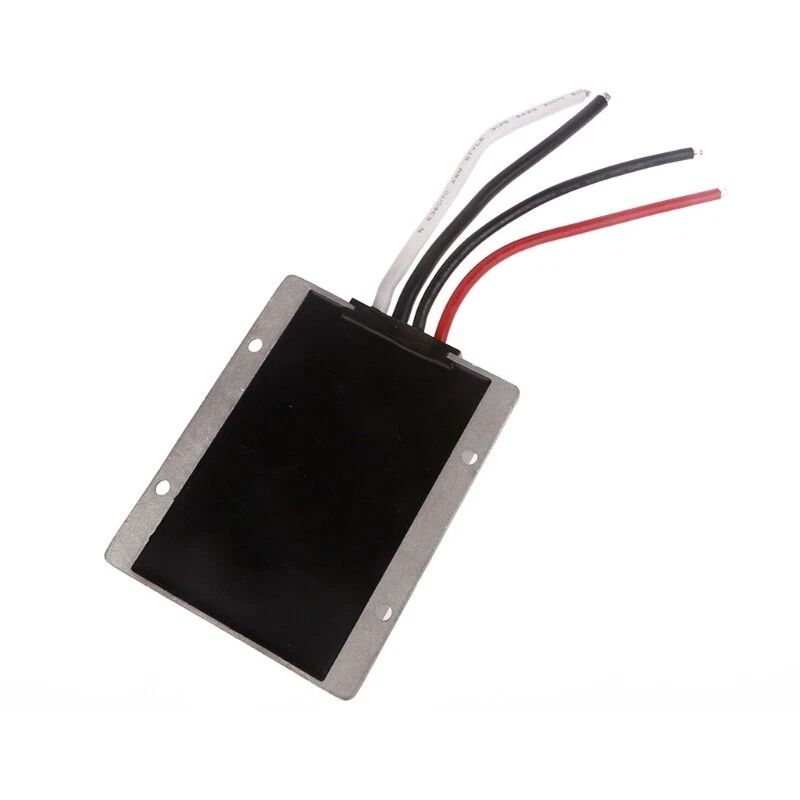

Bekötés (balról jobbra lapjára helyezett állapotban):
vastag fehér (vagy vastag sárga): pozitív kimenet 12V
fekete, fekete: negatív kimenet, negatív bemenet
vékony piros: pozitív bemenet (36/48V)

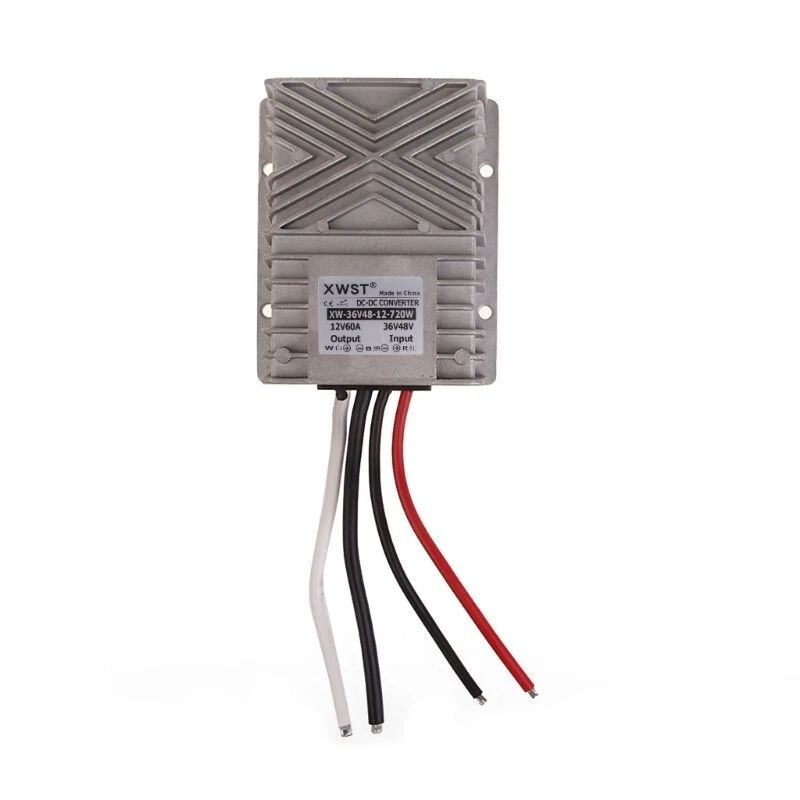

Waterproof DC/DC Converter Regulator 48V Step Down to 12V 60A 720W
Industry grade DC 48V to DC 12V buck converter
More than 95% power conversion efficiency
Built-in over / under voltage input, overload, overhead, and short circuit full protection
Application for vehicles, security systems, telecommunications, medical equipments, instruments, etc
Waterproof, Shockproof, dustproof, anti-shock protection, stable performance
Ultra compact size, light weight
Auto-recovery when device is back to normal operating
Stable and reliable performance
Simple to install
Input voltage: DC 36V 48V (abs max. 28V-60V)
Output voltage: DC 12V
Output current: 60A (rated working current in a long period)
Output power: 720W
Case material: Die-cast aluminum
Potting material: Epoxy sealed
Size: 74 * 74 * 32mm (L * W * H)
