DIN Síre szerelhető Digitális PWM vezérlő, DC motor, fény, stb szabályzó modul
DC Motor Speed Governor 12V 24V 48V 60V PWM Motor Driver with Red Display Module

Cikkszám: #4724

100% magyar cég! 100% magyar raktár!

~~49,990~~ Ft (Bruttó) Ár: 41,990 Ft

Raktáron

Szállítása már 1490Ft-tól, akár 1 munkanap...

Mikor vehetem át?

Kosárba tesz

Név *: E-mail *: Telefon *:

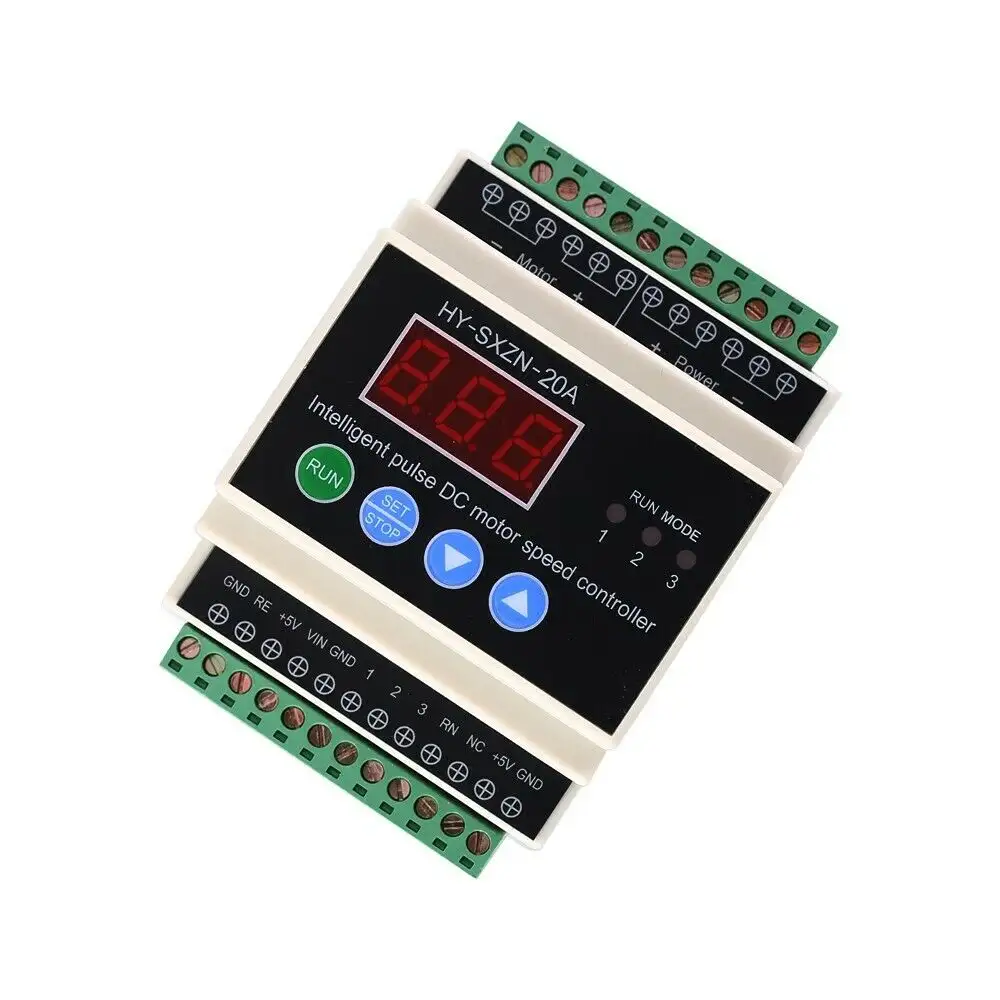

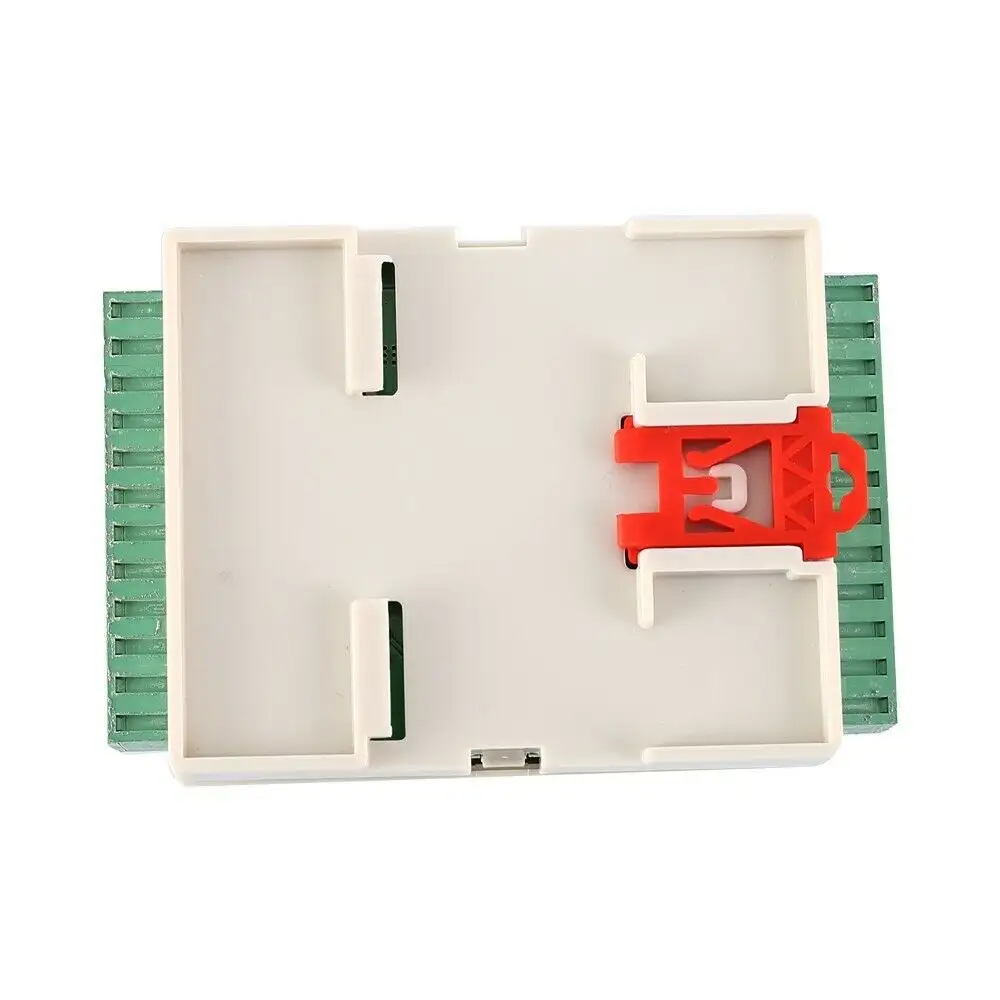

DIN sínre szerelhető intelligens PWM motorvezérlő (Motor Driver Module).

Opcionálisan zümmerrel és nélküli is elérhető a termék (raktáron zümmer nélkül tartjuk)

1.Description:

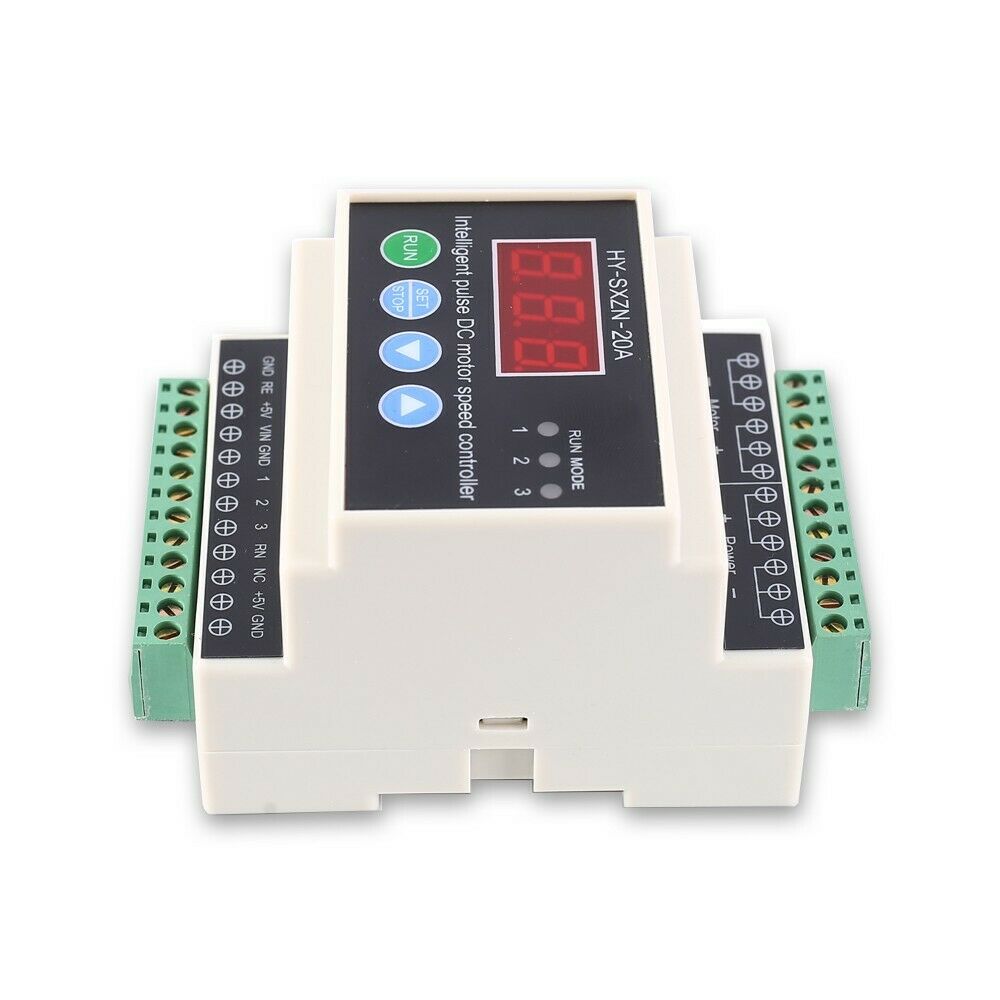

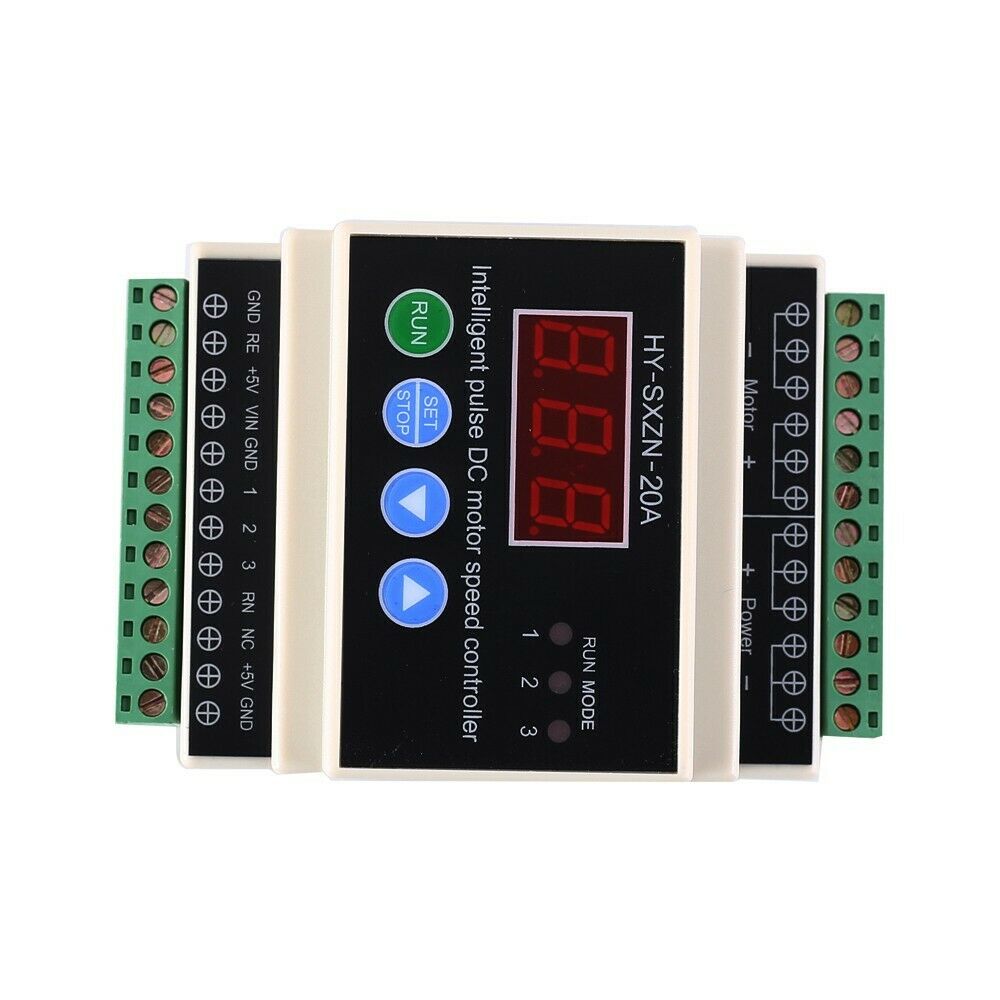

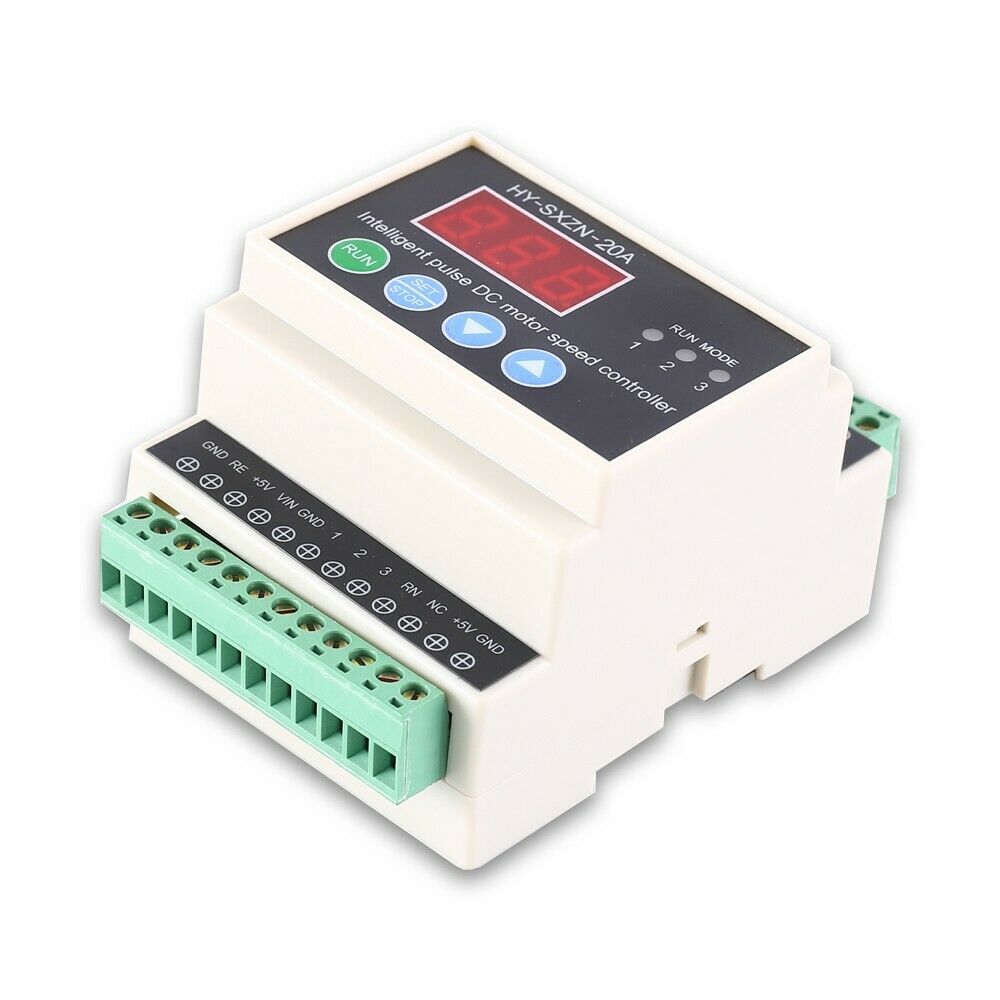

HY-SXZN20A is a PWM motor driver with red display module.It can control the speed of the connected load.It has been widely used in industrial production.

2.Feature:

1>.Overcurrent protection

2>.Digital display

3>.Soft start function

4>.Soft stop function

5>.PWM pulse width modulation speed regulation

3.Parameter:

1>.Product Name:PWM Motor Driver Module

2>.Model:HY-SXZN20A

3>.Product Voltage:DC 12V~65V

4>.Work Temperature:-25℃~85℃

5>.Work Humidity:5%~95%RH

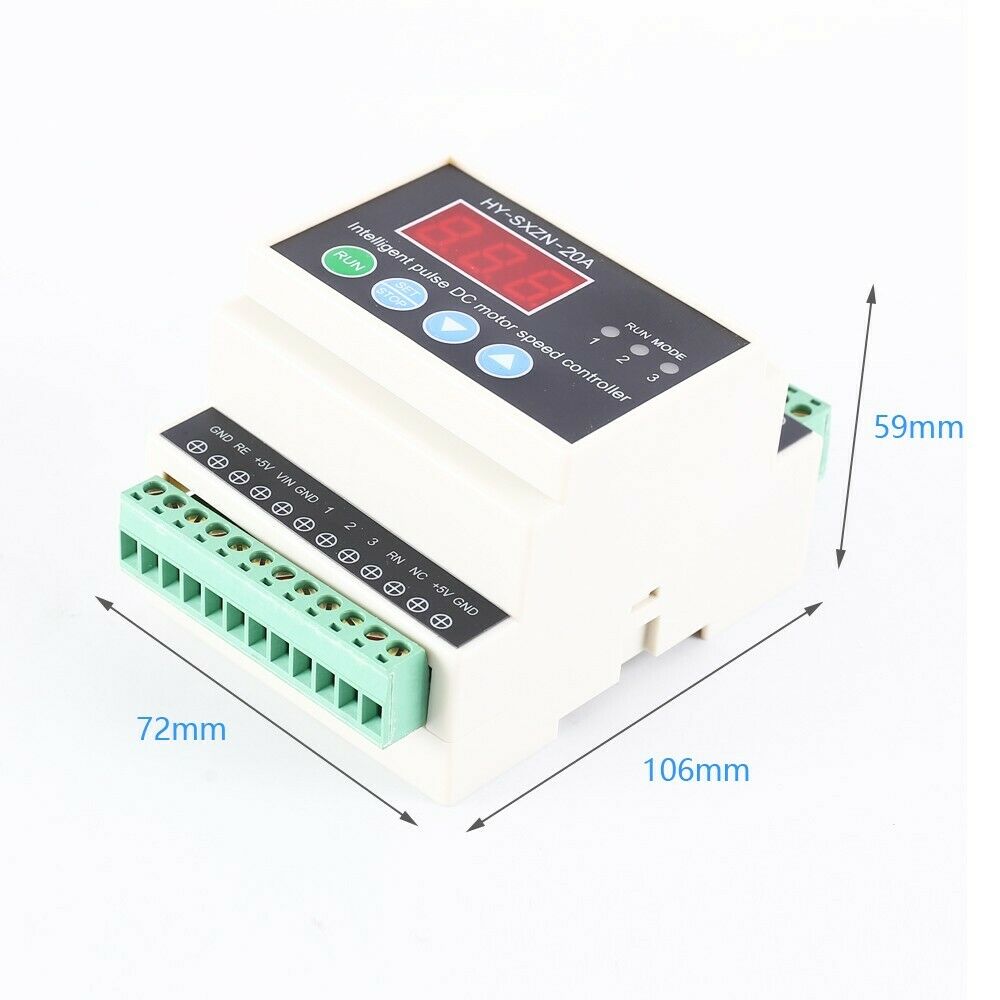

6>.Size:72*106*59mm

4.Function Description:

1>.It is suitable for DC 12V~65V and 30A(MAX) brushed motor.

1>.Overcurrent protection.(the module will start overcurrent protection when the current exceeds the set value and exceeds 10ms)

2>.Soft-start function:No impact on the power supply when the module starts.(Delay range is 0~10s)

3>.Soft-stop function:No impact to the device when the module is stopped.(Delay range is 0~10s)

4>.The product can be adjusted manually,analog voltage,PWM control speed,and remote control.

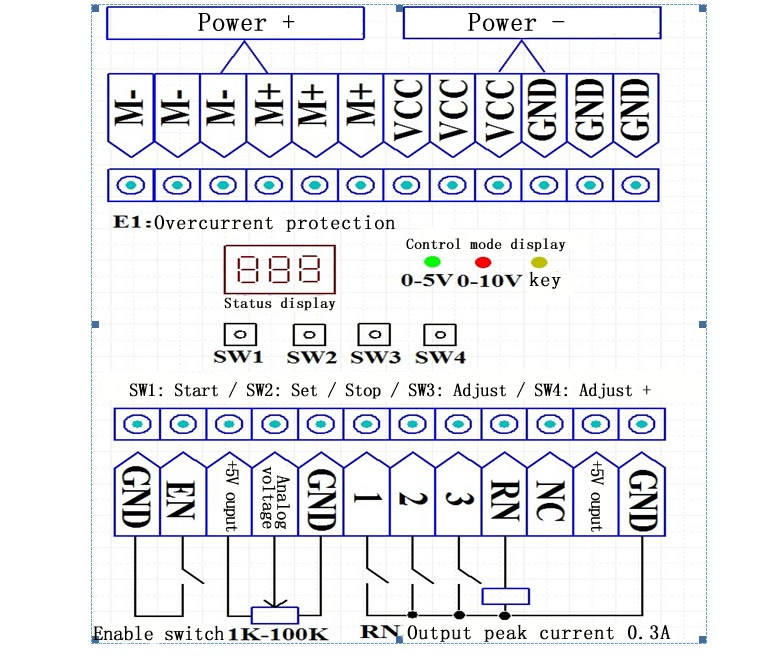

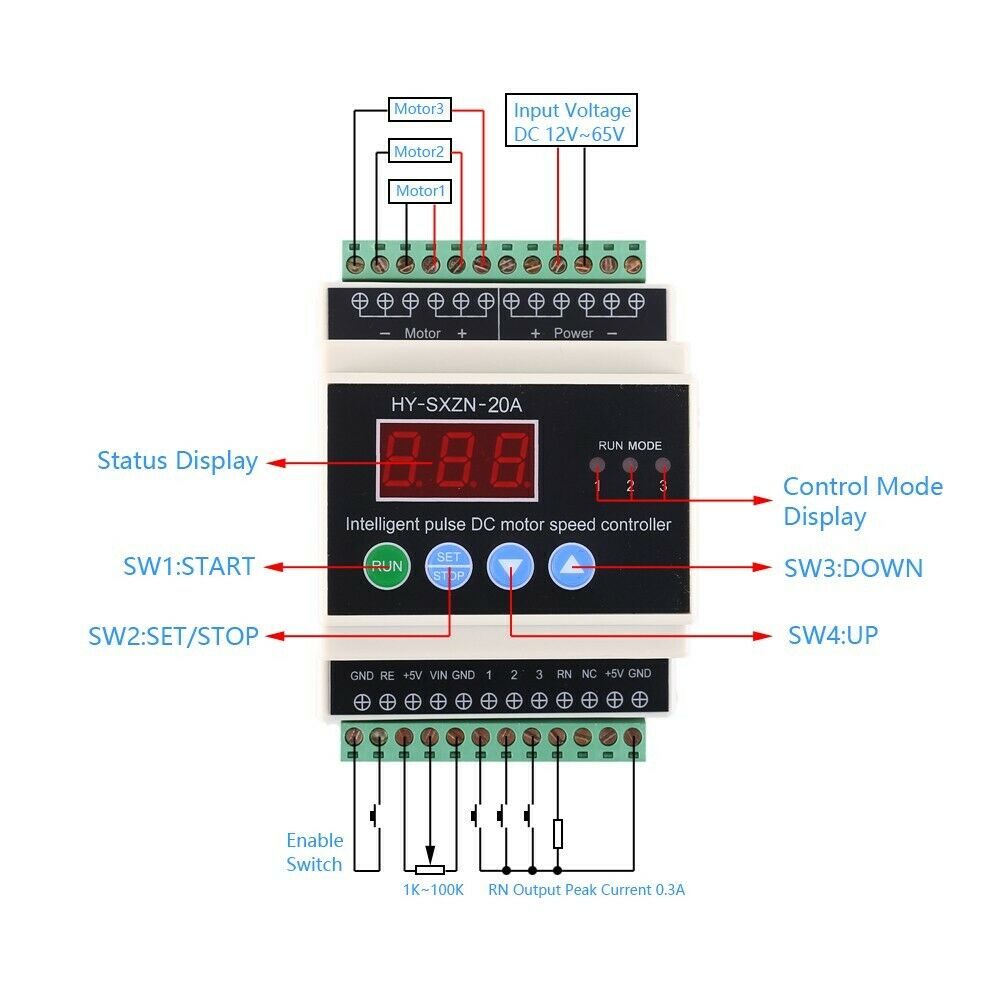

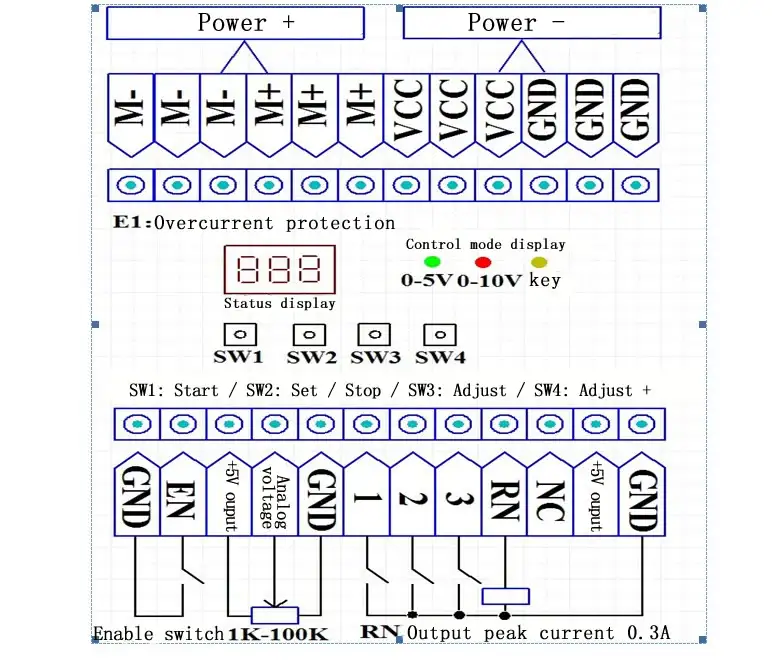

5>.Terminal external design:1,2,3 are backup inputs,RN is backup output.

5.Parameter Settings:

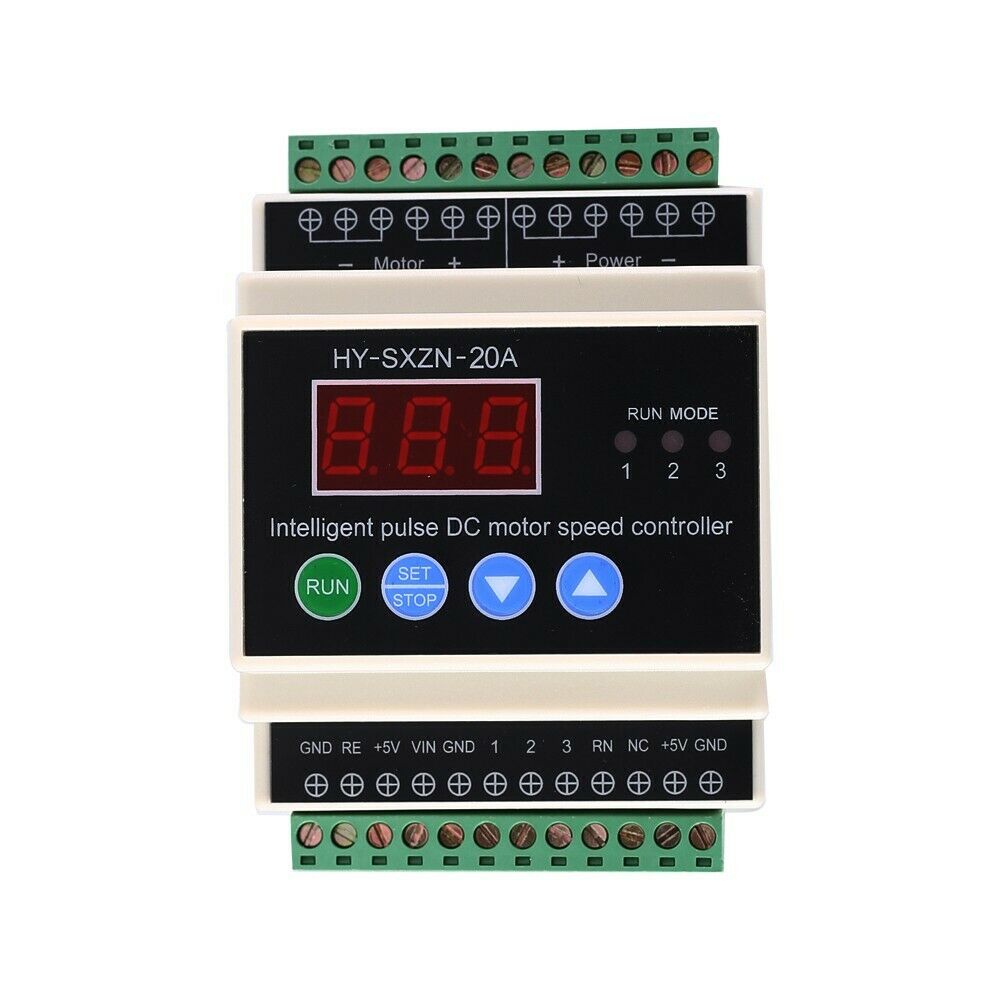

1>.SW1:Start,SW2:Set/Stop,SW3:Decrease,SW4:Increase

2>.Motor rated current setting:Long press SW2 until a sound is heard after three seconds,then release,then press SW1 again, the display shows A 5.0,increase or decrease by press SW3 and SW4 buttons(long press will accelerate the increase and decrease).Adjustment range is 0.2-30A.

3>.Motor acceleration time setting:Long press SW2 until a sound is heard after three seconds,then release,press SW2 again,the display shows U2.0,press SW3 and SW4 buttons to increase or decrease (long press will speed up to increase or decrease) The adjustment range is 0.0-10 seconds.

4>.Motor deceleration time setting:Long press SW2 until a sound is heard after three seconds,then release,and then press SW2 twice,the display shows d2.0,press the SW3 and SW4 buttons to increase or decrease(long press will speed up to increase or decrease).The adjustment range is 0.0-10.0 seconds.

5>.Input signal settings:Long press SW2 until a sound is heard three seconds later,then three SW2,screen display I05,press the SW3 and SW4 buttons to increase or decrease(long press will speed up to increase or decrease).The adjustment range is 0-5/0-10.

6.Operating mode:

1>.Button mode (remote control mode):Short press SW1 to start the module,the display shows the real-time output PWM duty cycle.Press the SW3 and SW4 buttons to accelerate and decelerate(long press will accelerate to increase or decrease), and in standby mode,press SW3 and SW4 to adjust the output PWM Duty cycle,short press SW2 again to stop.

2>.External signal control mode:Turn on EN,through the analog terminal number input signal(the default signal is 0-5V signal, which can be set to 0-10V signal by parameter),the display shows the real-time output PWM duty cycle. stop.
